2020 Seawind 1190 Sport

PREMIUM EXPERIENCE WITH ENHANCED DESIGN FEATURES
The Seawind 1190 variant of the range appeals to the hundreds of Seawind owners who enjoy racing and fast cruising.

Using racing technologu with Dynex synthetic riging, weight has been taken out of the rig up height.

2020 SEAWIND 1190 Sport (11.90 METRES / 39ft) STANDARD SPECIFICATIONS AND EQUIPMENT.

1. GENERAL: The overall finish of the Seawind 1190 Sport will be consistent with that of the well known and loved 1160 range with only the highest quality equipment used throughout.  The overall concept of the 1190 sport is for a competitive sports catamaran at a level of construction, workmanship, equipment, fit out and style that surpasses any other available in the market at this price range.
2. EXTERIOR / LAMINATE: • Finish: Full female molded hulls & decks, exterior gelcoat, and carbon fiber finish with molded-in non-slip surface on deck areas • Hull Laminate: New Infused Vinyl Ester (Modified epoxy) resin laminate of the entire hull laminate. Polyester resin elsewhere. Laminate specifications are certified to CE and Australian survey standards.

• Aluminium Hatches & portholes (9 in total)
• 4 x Forward Hatches 470mm x 470mm
• 2 x Mid cabin hatches 470mm x 470mm
• 1 x Port Bathroom window hatch 507mm x 377mm
• 1 x Aft Cabin window hatch 507mm x 377mm

• Fibreglass Deck Hatches:
• Forward anchor & storage hatches x 5
• Cockpit storage hatches x 2

• 6 x Docking cleats. Each side : bow, stern & amidships.
• 1 x Heavy duty mooring cleat on forward walkway.
• Ventilation: 2 x forward cabin hatch vents.
• Mast base turning blocks. All halyards & sail controls to cockpit.
• 13 x Rope clutches.
• Sheet winches : 2 x 45ST – 2 speed self tailing, 3 x 40ST – 2 speed self tailing & 1 x 15ST self tailing
• Stanchions/Rails: High quality stanchions 3 life-lines with 700mm high synthetic lifelines to meet CE requirements.
• 2 x transom access gates with pelican hook releases.
• Aft swim ladder
• Dinghy davits.

• Furniture and cabin sides in gloss gelcoat finish.
• Cabin top lined with lightweight liner.
• Floors: synthetic timber flooring.
• Cabinet doors in lightweight modern finish.

SALOON:

• New Lightweight carbon fibre saloon table.
• Upholstered settee.
• Cocktail cabinet with carbon fibre finish.
• Forward opening windows with in marine ocean hatch frame. Side windows in 6mm toughened glass.

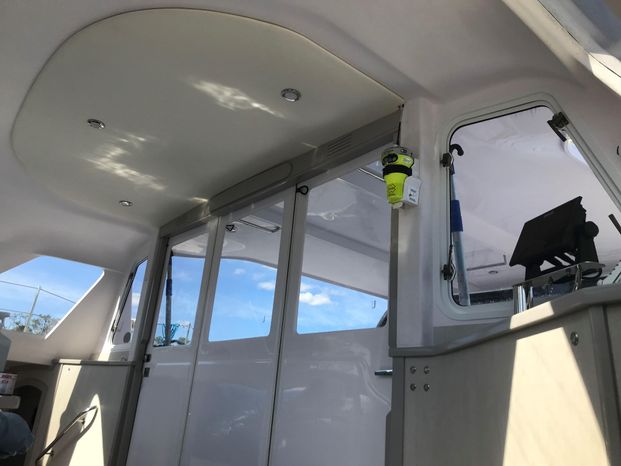

• Tri-fold saloon doors.
• Removable alloy framed, helm hatches.

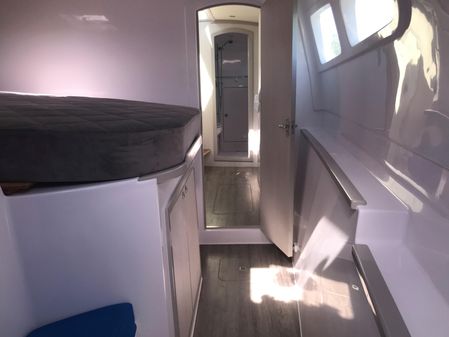

SLEEPING CABINS:

• Light weight pvc foam cored timber doors on all private cabins.
• Port & Starboard fwd cabins : Each queen sized bed (2050mm x 1540mm).
• Aft Starboard cabin : Double bed (1990mm x 1230mm).
• Mattresses 150mm ( 6” ) foam upholstered.
• Cabins lined.
• 12volt LED lighting.
• Storage/Cupboards.

PORT HEAD:

• New Polished light weight pvc foam cored timber door.
• Manual toilet. Discharge via holding tank.
• Holding tank built in. Discharge Pump out by shore station or directly overboard 130L.
• Pipes, skin fittings and sea-cocks are easily accessible and to meet survey requirements.
• Vanity basin with pressure water.

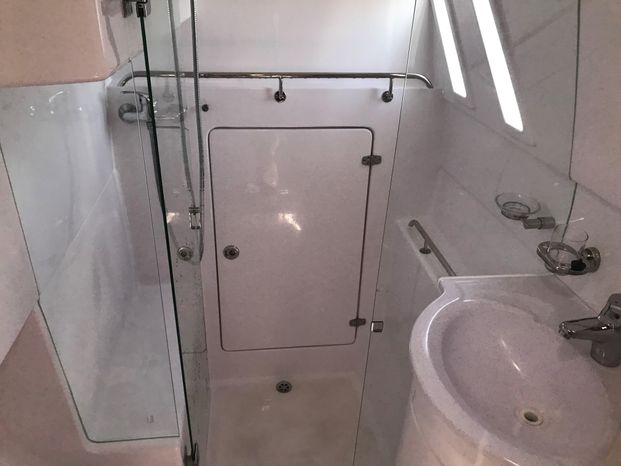

• Separate shower stall with wall mounted shower head & mixer tap.
• Electric shower bilge pump with direct overboard discharge.
• Large quantity cupboards / shelves to very high quality.

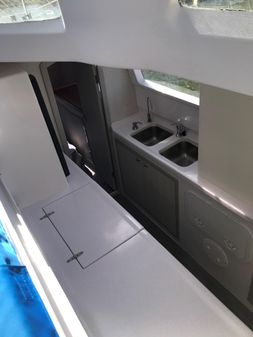

• Spacious galley with New lightweight Granite coat benchtops.
• Three (3) burner LPG stove, stainless steel pot holders. Flame failure device to shut off LPG immediately in event of flame going out.

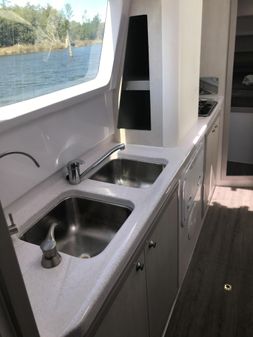

• Stainless steel sink.
• Pressure fresh water system.
• Refrigerator: Front opening upright fridge with freezing compartment 130 litres.
• Under bench storage.
• Trash bin.
• LPG solenoid control in galley.

• Twin lightweight Honda 20hp engines. Mounted under each helm seat at each steering station.
• Remote electric key start with electric tilt fitted.

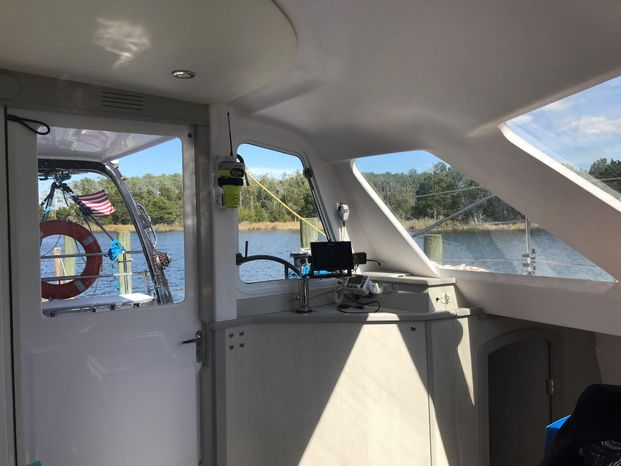

• Dual engine controls at port helm station.

• High quality DC electrical switch panel with circuit breakers, LED indicator lights and voltage display.
• Marine grade tinned electrical wiring with extensive use of heat sealed connectors.
• Batteries x 3 comprising: House System (260 amp hrs) : 2 x 130 amp hr heavy duty batteries. One engine cranking battery – 130 amp hr heavy duty battery.
• 230amp heavy duty isolation switch.
• 12 V lighting : Numerous 12V interior lamps and courtesy lights throughout including recessed lights in cockpit.
• 4 x 12V Outlets.
• CE approved navigation lights. Port & Starboard mounted on bows.
• Deck floodlight mounted on spreaders.
• Mast head anchor / riding light.

• Clear anodised aluminium mast and boom. Double spreader rig.
• Standing Rigging  – Forestay 1 x 19 Dieform wire.
• Cap Shruds Dynex Dux, synthetic rigging.
• Diamonds 1 x 19 Stainless Steel wire.

• Halyards – Main halyard:  12 mm Spectra rope : Heavy duty shackle.
• Jib halyard:  8 mm Spectra rope. Heavy duty shackle.
• Topping lift:  8 mm rope, Heavy duty shackle.
• Spinnaker Halyard:  8mm Spectra with snap-shackle
• Screecher halyard with new 2:1 purchase system.
• Boom outhaul: 10mm Spectra.

• Slab reefing.
• Fully battened square top black aramid, laminate mainsail. Triple stitched radial construction. Leach adjustable batten end caps. Fibreglass sail battens.
• Black aramid, laminate jib with vertical battens.
• Asymmetric spinnaker in any color of your choice.
• Carbon fibre bowsprit with synthetic bridle wires.
• Mainsail cover with integrated lazy jack system.
• Self-tacking headsail, curved headsail traveller track with end stops. With New single line control sheet to cockpit.
• Main sheet run to port and starboard helms.

FACTORY OPTIONS:

BBQ - Grill (MAGMA)

LPG HOT WATER SYSTEM INC GALLEY HOT WATER

ANCHOR SECOND SYSTEM (35LB DELTA, 10M CHAIN & 50M ROPE)

WINDLASS - MANUAL RECOVERY UPGRADE

WINDLASS - FOOT SWITCH DOWN

ADDDITIONAL CHAIN (55M TO 80M 8MM)

BATTERY AGM 450AH UPGRADE

SOLAR PANEL UPGRADE FROM 2 X 125W TO 4 X 200W & MPPT CONTROLLER

ADDITIONAL 12V USB OUTLET

LIGHTNING PROTECTION

BENCHTOP FREEZER

B&G NAVIGATION PACKAGE WITH 7" PLOTTER, TRIDATA AND AUTOPILOT

B&G BROADBAND 4G RADAR

DECK WASH FRESHWATER

GALLEY CHARCOAL FILTER WITH SPIGOT

DINGHY OUTBOARD BRACKET

SCREECHER 56SQM, CONTINUOUS FURLER & SHEETS

JIB ROLLER FURLER

MAST HEAD WINDEX

Tri Color mast head light

ENGINE UPGRADE TO 2 X 25HP HIGH THRUSH YAMAHA'S

OWNER UPGRADES and added inventory

Standard Horizon GX1700 VHF

ACR 406 MHz EPIRB

Si-Tex MDA-5 ais (5Watt, class Bplus transceiver)

B&G Vulcan 7r chart plotter and NAC3 autopilot computer have been replaced (January,2023).

Navigation desk with storage compartment

Outboard motor freshwater flush system (permanently plumbed to freshwater system)

lpg gas detectors

3d printed water heater offshore/rough water storm cover for the exhaust flew (prevents sea water exposure of water heater)

Piezoelectric alarm/siren for Vulcan Chart plotter (collision avoidance, shallow depth, etc.)

lockable y valve holding tank bypass system for offshore discharge

Custom tailored side clear

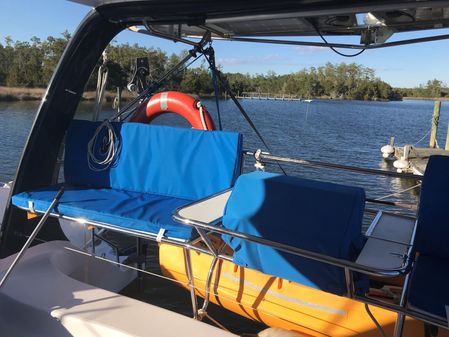

Custom tailored Targa cushions

Custom tailored barbecue grill cover

Custom tailored dinghy cover

Matching custom tailored covers for every seat cushion/backrest in the boat- in continuous use since August 2019 handover- preserving original upholstery in bristol/brand new condition

Outboard motor crane

 2 part polyurethane coating applied to the oem carbon fiber bowsprit

major rudder cassette steering linkage upgrade: 3d printed thermoplastic polyurethane boots waterproof the tiller/draglink ball joints - eliminating all corrosion

New (2022) gudgeons/pins

Custom built in convenience step in owner’s Cabin

two extra rudders

Extra Dacron jib (Est $3000 value), aramid laminate oem jib is like new- used only 10 days

numerous hardware upgrades, including, additional and larger mainsheet tackle (blocks), stanchion cleats, screecher furler lead blocks and dead leads, auxiliary anchor hardware

 Upgraded anchor bridle with additional pad-eyes, heavy duty chain hook

Portland Pudgy” roto molded lifeboat/dinghy with both sailing gear and survival/lifeboat canopy (serves as dinghy in port and life raft offshore. 4hp Tohatzu 4 stroke outboard and oars included. Obviously for those preferring lifeboat capability over a planning rib

Hydro vane windvane self-steering

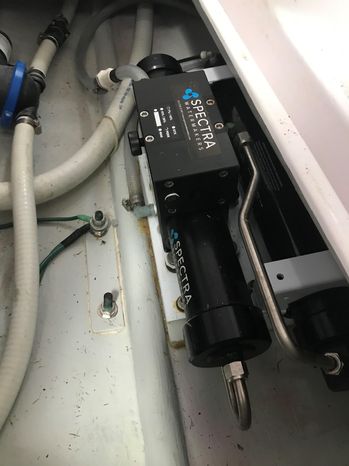

Spectra Ventura 150 watermaker

replaced propane regulator/solenoid assembly and built a waterproof enclosure

Extra USB and cig lighter charge outlets

AC outlet in galley installed and wired to future inverter location

Extra, new Yamaha 25 high thrust prop

Extra main halyard, assorted other extras
