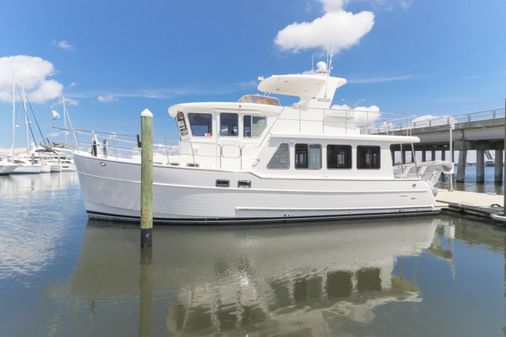

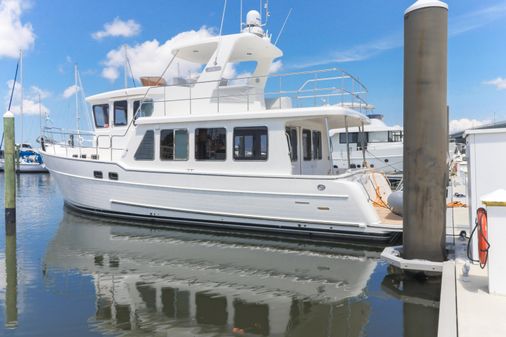

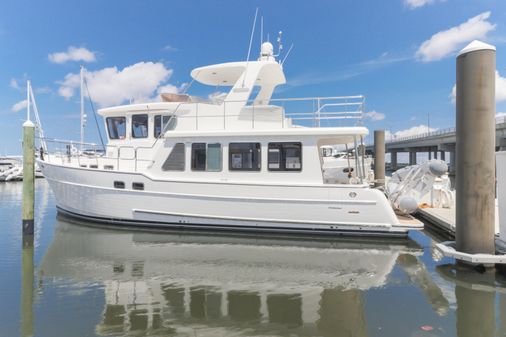

2020 North Pacific 45 Pilothouse

Charleston, South Carolina


This is a chance to own a near-new North Pacific 45 without the wait, and at a considerable discount from a new order. Gratitude has many late-model upgrades and is in excellent condition inside and out. She’s proven to be a capable and comfortable boat having logged 10,000 miles and served as a partial live aboard.

This NP45 has the popular 2-stateroom, 2-head layout.The NP45 is very spacious for its size and can be compared more closely in interior volume to many 50’ boats with all the benefits of a smaller, easier to manage, size. In addition to this, Gratitude is equipped with powerful 24v thruster making maneuvering easy. The builder and its designers have built a well though out boat that would make cruising comfortable and and easy. A great Galley, well organized engine room, and large master cabin make this a must see.

Gratitude is equipped with the standard Cummins 355hp engine and cruises between 7 and 10 knots. At 7 knots, fuel consumption is about 2.5 GPH, 4GPH at 8 knots, 6.5 GPH at 9 knots and 10 GPH at 10 knots. Top speed is about 11 knots.

Gratitude is well-equipped for cruising the East Coast and the Loop. All equipment is nicely laid out for easy access and maintenance.


Neptune Yacht Sales and Services is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Ashley Yachts - Charleston.

Basic Boat Info

Make: North Pacific
Model: 45 Pilothouse
Year: 2020
Condition: Used
Category: Power
Construction: Fiberglass
Boat Hull ID: YDO45011D920
Has Hull ID: Yes


Length: 45 ft / 13.72 m
Length Overall: 45'8 ft / 13.92 m
Beam: 13'8 ft / 4.17 m
Max Draft: 4'6 ft / 1.37 m
Displacement: 44,000 lb
Bridge Clearance: 17'2 ft / 5.23 m
Dry Weight: 36,000 lb

Engines / Speed

Engines: 1

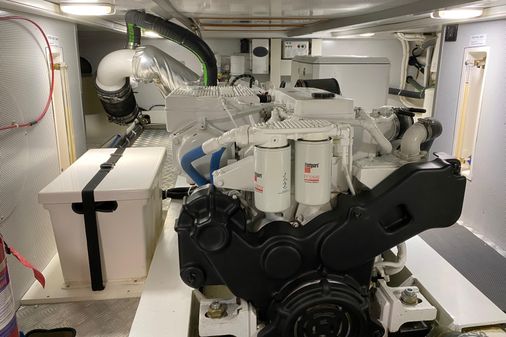

  • Make: Cummins
  • Model: QSB6.7355HOI
  • Drive Type: Direct
  • Fuel: Diesel
  • Engine Power: 355hp
  • Type: Inboard
  • Propeller Type: 4 Blade, Bronze
  • Year: 2020
  • Engine Hours: 1497
  • Engine Location: Center
Displacement Type: Full Load


Fuel Tanks: 2
Fuel Tank Capacity: 100 gal
Fuel Tank Material: GRP
Water Tanks: 1
Water Tank Capacity: 250 gal
Water Tank Material: GRP
Holding Tank Count: 1
Holding Tank Capacity: 50 gal
Holding Tank Material: GRP


Heads Count: 2
Drive Type: Direct
Boat Class: Motor Yachts, Flybridge

Deck and Hull

Zodiac RIB with Torquedo Outboard

Olsson ST275 Davits

Side Power 24v Bow Thruster

Side Power 24v Stern Thruster

Courtesy Lights (3)

Fresh & Raw Water Washdown

Maxwell HRC10-8 Windlass

280' High-test Galvanized Chain (5/16")

Chain Locker with Divider

Rocna 33 Anchor

Storage Locker at the Front of the Pilothouse (Accessible via 2 Hatches)

Polished Stainless Steel Sampson Post

Lazarette with Gas-assisted Hatch

Transom Door

Starboard Bulwark Door

Aluminum Sliding Door

Transom Locker with Fresh/ Rew Water Washdown

Fresh Water Swim Platform Shower

Stainless Steel Swim Ladder

Flexiteek Deck on Swim Platform and Cockpit Floor

Stainless Steel Railing (top railing 1 1/4") and Stanchions

FRP Non-skid on all Deck Surfaces

Stainless Steel Mooring cleats (4 in cockpit, 2 midship, 2 at the bow +1 on each side of salon)

Stainless Steel Fuel, Water, and Waste Tank Deck Fittings

Stainless Steel Portlights

Tempered Glass Windows with Stainless Steel Frames

Accent LED Lighting throughout Exterior


Build Information

Solid, hand-laid fiberglass hull
Outer two layers are vinyl ester resin
Superstructure cored primarily with synthetic honeycomb core including all decks
Fully integrated swim platform
All interior floors supported by aluminum grid
International paints micron Extra anti-fouling
International paints epoxy barrier coating below water line
Vinyl Ester resin 2 outer layers of hull

Spare parts, safety equipment, bedding, waterway guides included.


ZF85A Transmission

2" Engine Room Sound Insulation

(5) Salon Floor Hatches for Access, Flip-up Access Stairs

AluminumNon-skid Plate Floors

Engine Room Light ( 4) - Upgraded to LED

Engine Room Blower

Stainless Steel Shaft - Aqua 17

Shaft Shark Line Cutter

Dripless Shaft Seal


Precision 4-blade Propeller, Hung Shen

Hynautic 2-Station Hydraulic Steering

GHP20 Corepack (autopilot) with Smart Pump

Cummins ETS (electronic throttle and shift) Control Module

Water Lift Muffler and 6" Exhaust

Seacock and Strainer on Engine Raw Water Intake

Dual Racor Fuel Filters

Rule Automatic Bilge Pumps (3)

Manual Bilge Pump (1)

Whale Diaphragm Macerator and Pump-out

Dual Whale Variable Speed Fresh Water Pump with 1gal Accumulator Tank

11-gallon Water Heater

Oil Change System for Engine and Generator

Seafire Automatic Fire Extinguisher and Automatic Engine Shutdown

Prepped for Water Maker Installation


Northern Lights 9Kw Genset w/ Sound Shield and Water/ Gas Separator

Magnum MS2812 2800W Inverter/ Charger (pure sine wave)

12v/200AMP AGM battery in battery box (3 house batteries, 2 thruster/windlass batteries, 1 engine starter, 1 generator starter)

Master Control Panel (AC/DC circuit breakers)

Bonded Electrical System

150W SolarPanel (3) on Hardtop with Charge Controller in Pilothouse

50 amp 125/250v Shore Power Service


GC10 Reverse Image Camera (installed on radar arch facing aft)

Extra12" Multifunction Screen in Pilothouse

Vesper AIS Tranceiver

Intellian i3 Satellite TV Antenna

GMR24XHD Radar Antenna

Fusion Stereo System (speakers and controls in salon and pilothouse)


(1) GPSMap 7412 Multifunction Display
(1) GHC20 Autopilot Control
(1) VHF 200


(2) GPSMap 7612SXV Multifunction Display
(1) GHC20 Autopilot Control
(1) VHF 200

Galley Cookware Intercom System with (4) Phones


Two Helm Seats

Stainless Steel Steering Wheel

Engine Gauges including Fuel Flow on Cummins Smart Tach

Cummins Single Lever ETS (electronic throttle and shift)

Windlass Control

Bow & Stern Thruster Control

Hardtop with 4 Dimmable Overhead Lights (Canatalupi)

Courtesy Lights (2)

D/C Outlet (1)

AC Outlet on Starboard Side (1)

Anchor Light

Navigation Lights

Stainless Steel Flag Base

Dual Trumpet Air Horn

Storage Cabinet/ Propane Locker on Starboard Side of Helm Seat (2 Viking fiberglass propane tanks)

Storage Locker/seat (2)

Folding Table

4 Fused 12V Switches to Control Systems and Lights on Flybridge

Flybridge Drains (drain water down to waterline, no dripping)

Canvas Cover for Raised Dash, Dual Helm Seat & other Seating

Sunbrella Bench Seat Cushions


A/C Outlet (2) DC Outlet (1)

Map Light (2)

Aluminum Sliding Door with Teak Interior Liner (2)

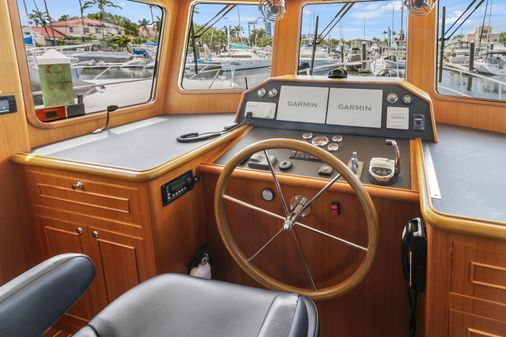

Blue Sea AC & DC Electrical Panels

Llebroc Helm Seat with 4" Pedestal

Cummins Single Lever ETS (Electronic throttle and shift)

Windlass Control

Chain Counter

Bow & Stern Thruster Controls

Fuel and Water Gauges

Horn Control

Teak Steering Wheel

Defrost Fan (2)

Windshield Wiper (3)

Windshield Washer (3)

Bench Seat with Footrest  -  Pull-out L Section


Storage Cabinet and Drawer

Reading Light above Bench Seat (2)

Engine Gauges including Fuel Flow on Cummins Smart Tach


Teak and Holly Cabin Sole

Satin-finished Teak Paneling and Cabinetry Throughout with 7 Coats of Polyeurethane

Routed Teak Fiddle on Top of all Teak Cabinets

Bent, Laminated Trim on Top of Most Cabinets (no miter joints)

Bookmatched Drawers and Cabinetry

All Drawers Dovetailed with Full Extension Slides

Push-button Locks on all Cabinets and Drawers

IMTRA 12V LED Lighting Throughout

Cordless Cellular Shades Throughout

Screens on all Sliding Windows and Laminated Safety Glass

Ultraleather Cushions

Cruisair 16,000 btu remote compressors (3) with air handlers (4)



Dimmable Lighting

Small Cabinet on Starboard Side

(2) Recliners

L-shaped Settee to Port with Dining Table (pullout bed available - bed pulls out over table)

Pop-up TV in TV Cabinet Port of Dinette


Owner's Cabin

A/C Outlet (2)

Queen Island Berth with 5" thick Foam Mattress

White Upholstered Headboard with Mirror Above


Reading Light (2)

Drawers Under Bed (4)

Hanging Lockers (2)

Other Lockers (4)

Other Drawers (5)

Opening, Screened Portlights (4)

Opening,Screened Overhead Hatch (1)

Ensuite Head


Owner's Head

Teak and Holly Sole

A/C Outlet (1)

Tecma Toilet with Freshwater Flush


White Staron Countertop

White Ceramic Sink

Shower Stall with Exhaust Fan

Mosaic Accent Wall

Shower Control and Nozzle

Frosted Glass Shower Door with NP Logo

Opening, Screened Portlights (2)

Scad Tech Holding Tank Level Guauge with External Sensors

Towel Racks and other Hardware

Whale Gray Water Gulper Pump

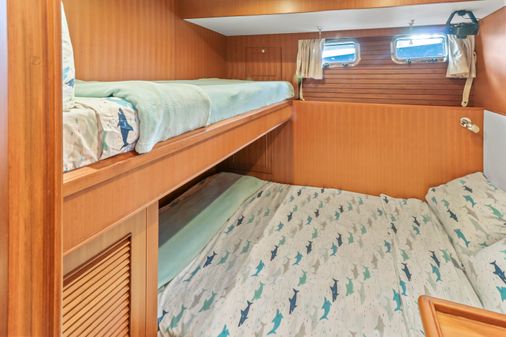

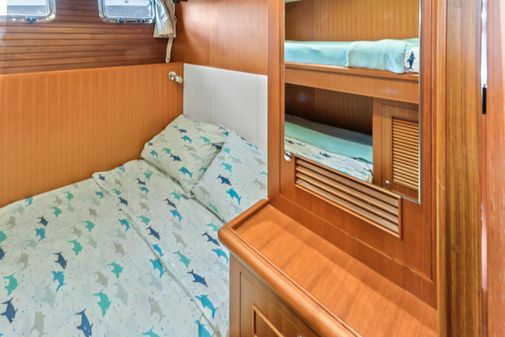

Guest Stateroom

Bunk bed layout with athwartship bunk along aft wall - side sible w/ drawers under below bunk A/C outlet (2)

Opening, screened porthole window (2)

Hanging locker w/ mirror on door, above drawers on fwd wall

White headboard aft head of bed (aft end of stateroom)

A/C outlet (5)

Reading lights (2)


Laundry Room

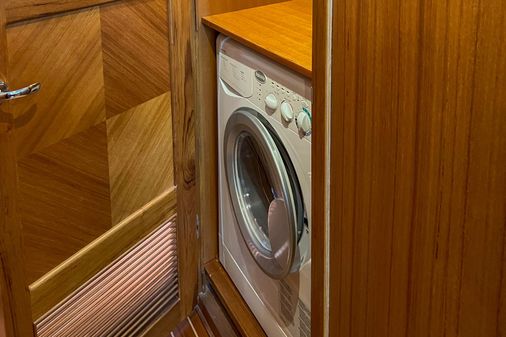

Dometic Washer/dryer - Vented Unit

Storage Above with Shelves and Hanging Rod

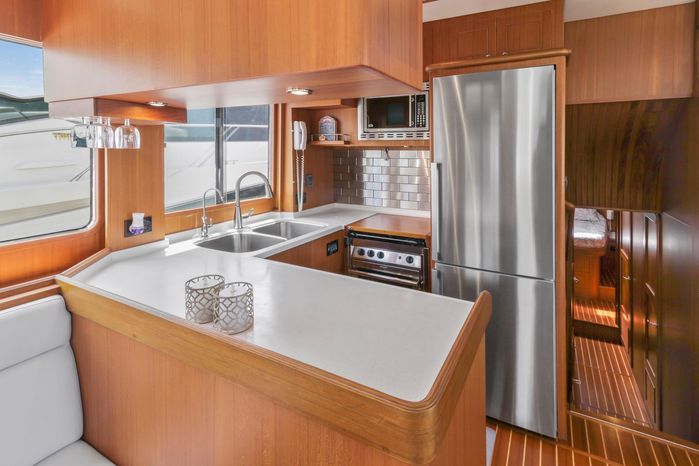

Staron Countertop

Double Stainless Steel Sink

Dual Aqua-Pure Water Filter with Dedicated Faucet

3-burner Force10 Propane Stove/oven

Summit Fridge/freezer w/ Stainless Doors - Freezer on the Bottom with Ice Maker

Storage Cabinet on Top of Refrigerator with AC Outlet


Teak Storage Cabinet above Stove

Drawers in Galley (6)

Cabinets in Galley (3)

Exhaust Fan Beside the Stove -Vented Outside

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
