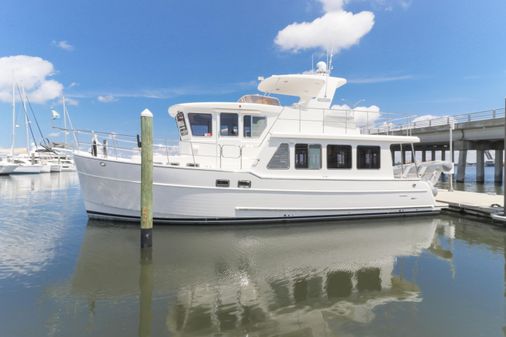

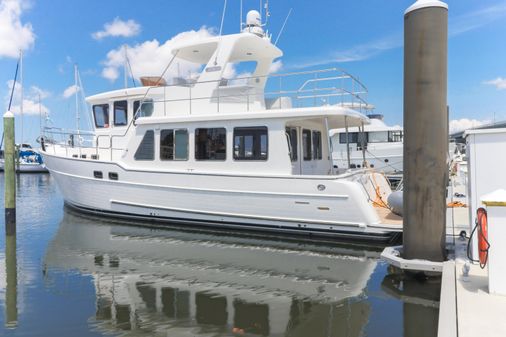

2020 North Pacific 45' Pilothouse

Solid, hand-laid fiberglass hull.
Outer two layers are vinyl ester resin
Superstructure cored primarily with synthetic honeycomb core including all decks
Fully integrated swim platform
All interior floors supported by aluminum grid
International paints micron Extra anti-fouling
International paints epoxy barrier coating below water line
Vinyl Ester resin 2 outer layers of hull

Engine Room, Propulsion and Fresh Water System:

355hp Cu mmins QSB diesel engine with 160 amp alternator
ZF85A transmission
Engine room 2" sound insulation
5 salon floor hatches for access and stairs that flip up at forward end for access
Aluminum non-skid plate floors
Engine room light ( 4) - upgraded to LED
Engine room blower
Fiberglass fuel tanks (2 X 200 gallons) - fuel lines for engine 1/2 ID
Stainless steel shaft - Aqua 17
Shaft Shark line cutter
Dripless shaft seal
PSS
Precision 4 blade propeller, Hung Shen
Hynautic 2 station hydraulic steering
Cummins ETS (electronic throttle and shift) control module
Water lift mufler and 6" exhaust
Sea cock and strainer on engine raw water intake
Dual Racor fuel filter
Automatic bilge pump (3) - Rule
Manual bilge pump (1)
Holding tank (50 GAL) w/ Whale diaphram macerator and pump out
Fiberglass water tanks (1 X 240 gallons)
Dual Whale variable speed fresh water pump with 1gal accumulator tank - quiet
Fresh water intake (1)
11 gallon water heater in engineroom
Oil change system for engine and generator
Seafire automatic fire extinguisher and automatic engine shutdown

Electrical:

Northern Lights 9Kw genset w/ sound shield and water/gas separator
Magnum MS2812 2800W inverter/charger (pure sine wave)
12v/200AMP AGM battery in battery box (3 house batteries, 2 thruster/windlass batteries, 1 engine starter, 1 generator starter)
Generator start battery (1)
Master control panel (AC/DC circuit breakers)
Bonded electrical system
150W solar panel (3) on hardtop with charge controller in the pilothouse
50 amp 125/250v shore power connection

Interior:

Teak and holly flooring throughout
Satin finished teak paneling and cabinetry throughout with 7 coats of polyeurethane Louvered doors for select locker
Routed teak fiddle on top of all teak finished cabinet
Bent laminated trim on top of most cabinets (no miter joints)
Book matched drawers and cabinetry
All drawers dovetailed with full exension slides
Push button locks on al cabinets and drawers
IMTRA LED lighting 12V throughout
Cordless cellular shades throughout
Screens on all sliding windows and laminated safety glass
Soft vinyl headliners - all attached with
Velcro Ultraleather fabric for interior cushions
Cruisair 16,000 btu remote compressor (3) with air handler (4)

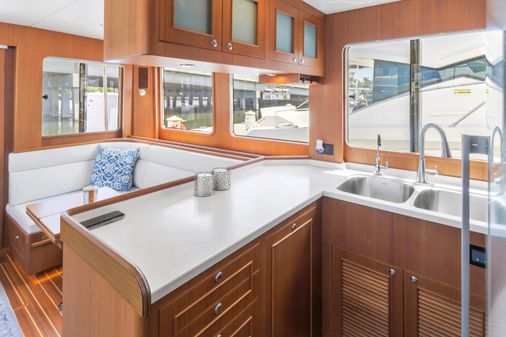

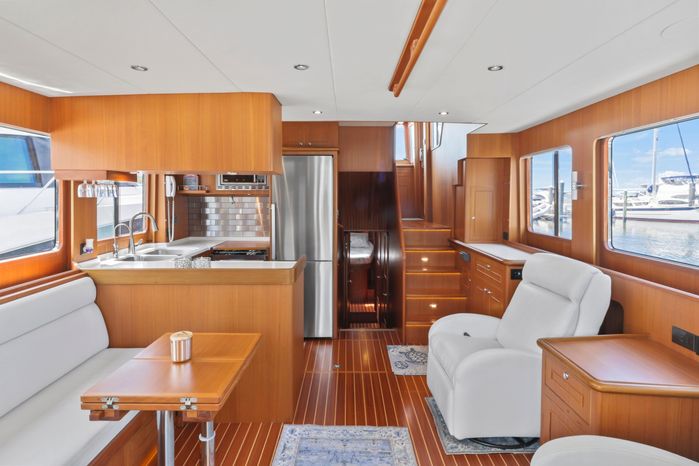

Salon, Dinette and Galley:

A/C outlet (5)
Reading lights (2)
Salon ceiling lights dimmable
Small cabinet on starboard side with recliner chair (2)
L settee port side with dining table - pullout bed - bed pulls out over table
Pop up TV in TV cabinet port side of dinette
Staron galley countertop
Double SS sink
Faucet with pullout spout
Dual Aqua-Pure water filter with spigot

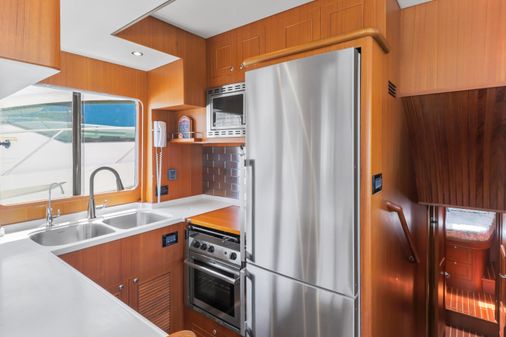

3 burner Force10 propane stove/oven
Summit fridge/freezer w/ stainless doors - freezer on the bottom -  FFBF247SSIM with ice maker
Storage cabinet on top of refrigerator with AC outlet
Microwave
Teak storage cabinet above stove
Drawers in galley (6)
Cabinets in galley (3) -  Make extra cabinet in fwd starboard side corner of the salon Exhaust fan beside the stove - vented outside
Hatch that lifts on galley countertop (1)
One ceiling hand rail in the salon
Ceiling cabinet with wine glass holder

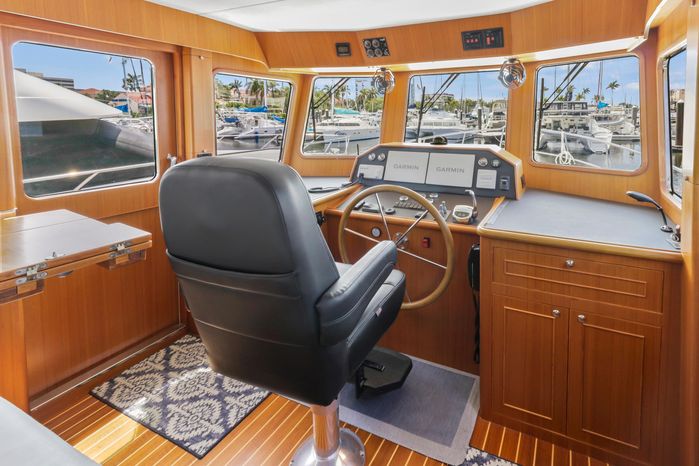

Pilothouse:

A/C outlet (2) DC outlet (1)
Map light (2)
Aluminum locking, sliding door with teak interior liner (2)
AC & DC electrical panels - Blue Sea
Llebroc made helm seat with 4" pedestal
Cummins single lever ETS (Electronic throttle and shift)
Windlass control -  chain counter
Bow  & stern  thruster control
Fuel and water gauges
Horn control
Teak steering wheel
Defrost fan (2)
Windshield wiper (3)
Windshield washer (3)
Bench seat with foot rest  -  Pull out L section and convertible bed section
Make bench seat full width
Table on SS stanchion
Storage cabinet and drawer
Reading light above bench seat (2)
Engine gauges inacluding fuel flow on
Cummins Smart Tach Aft window, opening, screened window

Head - Two head design
Teak head with teak and holly floors A/C outlet (1)
Tecma toilet with fresh water flush Mirror
White Staron counter
White ceramic undermount sink Shower stall - with exhaust fan - mosaic accent wall Shower control and nozzle
Frosted glass shower door with NP logo
Opening, screened porthole window (2)
Scad Tech holding tank level guage with external sensors
Towel racks and other hardware
Whale gray water gulper pump for shower drain

Guest Stateroom:

Bunk bed layout with athwartship bunk along aft wall - side sible w/ drawers under below bunk A/C outlet (2)
Opening, screened porthole window (2)
Hanging locker w/ mirror on door, above drawers on fwd wall  White headboard aft head of bed (aft end of stateroom)

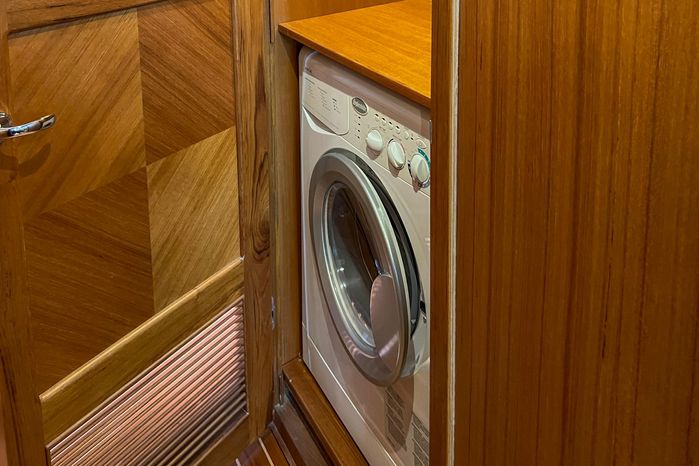

Laundry Room    Vented washer/dryer with shelves above and hanging rod

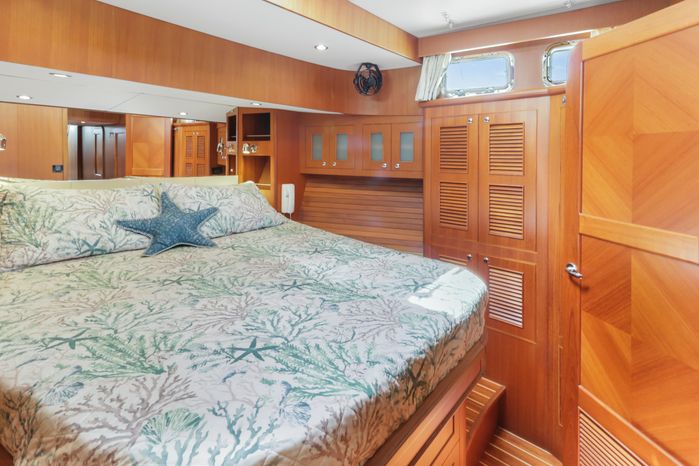

Master Stateroom:

A/C outlet (2)
Queen Island bed 5" thick fabric covered foam mattress
White headboard material with mirror above
Reading light (2)
Drawer under bed (4)
Hanging locker (2)
Other lockers (4)
Other drawers (5)
Opening, screened porthole window (4)
Opening, screened overhead hatch (1)
Ensuite head with teak finish, staron countertop, sink and Tecma Silence Plus toilet

Exterior Fittings and Equipment:

Stainless steel railing (top railing 1 1/4") and stanchions around all edges  secured with bolts
FRP no-skid deck on all deck surfaces
SS mooring cleats (8) - 4 in cockpit, 2 midship, 2 at the bow +1 on each side of salon
SS fuel, water and waste tank deck fittings
SS portholes
Tempered glass windows Stainless steel  window frames
Accent LED lighting around exterior

Cockpit:

Light (2) Hatch to access lazarette - gas assisted
Transom door leading to swim grid
Bulwark door on starboard side
Aluminum sliding door for along entry - teak insert for interior
Locker on transom with fresh/sea water washdown outlet
Locker on transom with shore power connector
Fresh water shower
Swim ladder SS aft upper deck supports (2)
Flexiteek deck on swim platform and cockpit floor

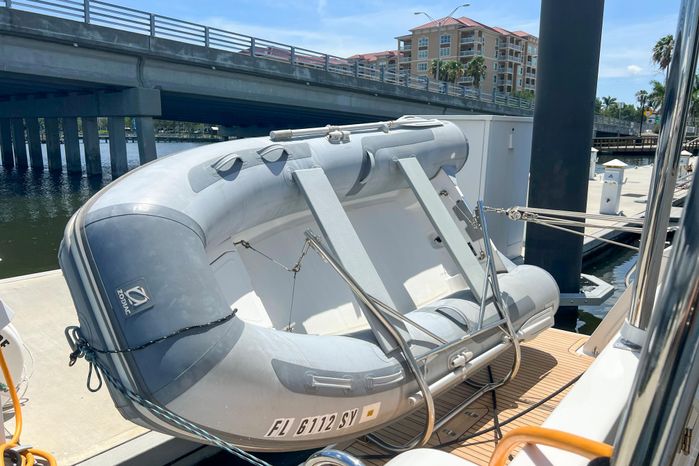

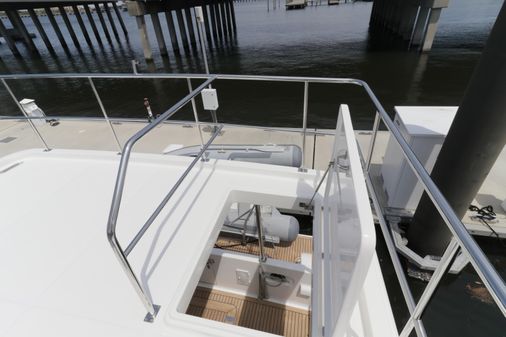

Olsson ST275 transom davit  Zodiac RIB dinghy with Torquedo electric outboard motor

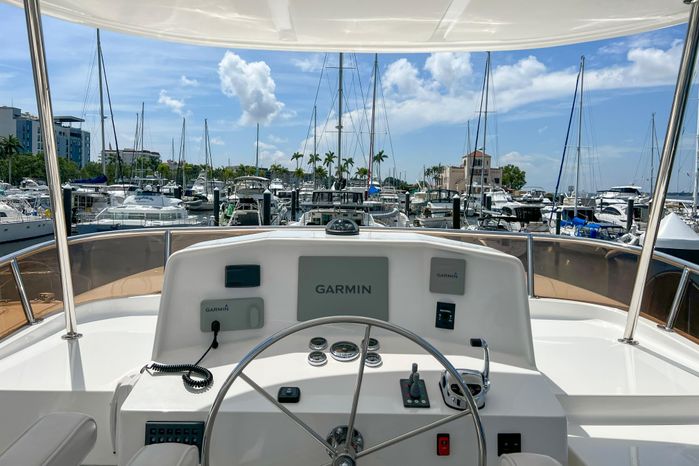

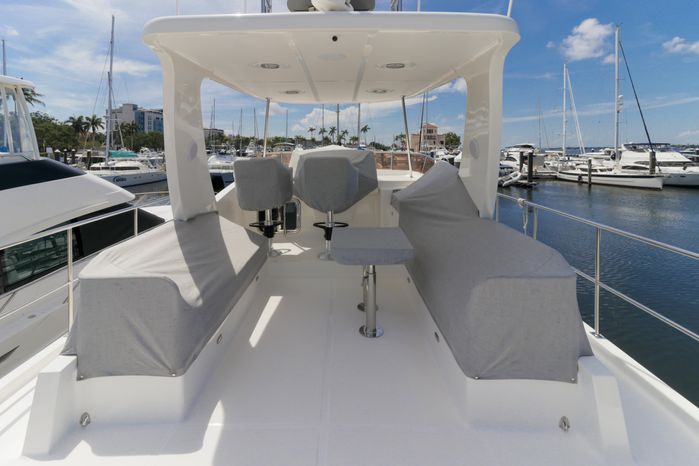

Flybridge:

Two helm seats
Stainless steel steering wheel
Engine gauges including fuel flow on Cummins Smart Tach
Cummins single lever ETS (Electronic throttle and shift)
Windlass control Bow  & stern  thruster control
Hardtop with 4 overhead lights (Canatalupi)  - dimmable
Courtesy light (2) D/C outlet (1)
AC outlet on starboard side (1)
Anchor light
Navigation lights
Stainless steel flag base
Dual trumpet air horn
Storage cabinet/propane locker on starboard side of helm seat -  Viking fiberglass propane tank (2)
Storage locker/seat (2)
One folding table
4 fused 12V switches to control systems and lights on the flybridge
Flybridge drains take water right down to waterline (no dripping)
Canvas cover for raised dash, dual helm seat & other seating

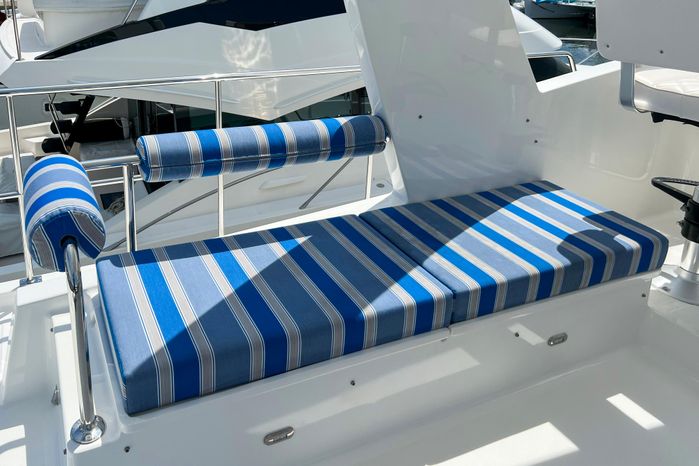

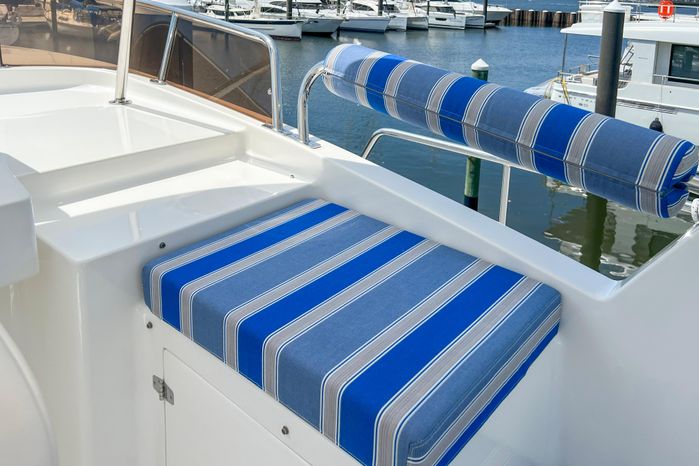

Sunbrella material used for bench seat cushions

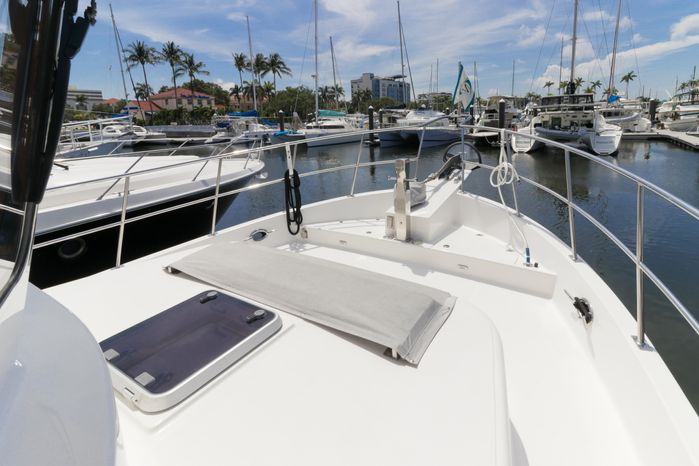

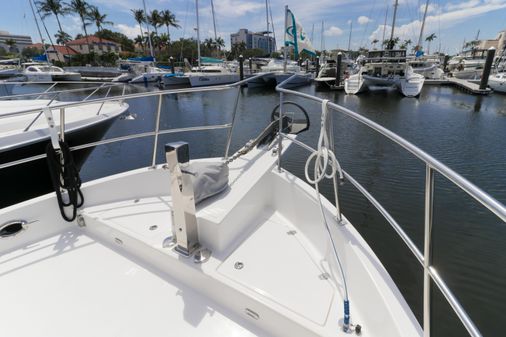

Forward Walkaround:

Courtesy lights (3)
Fresh & sea water washdown hose connector
Windlass, Maxwell HRC10-8 280 ft of high test galvanized chain (5/16")
Chain locker divided in half
Rocna 33 anchor
Hatch to access storage locker at the front of the pilothouse (2)
Polished SS sampson post

Other Equipment:

Side Power SE130, 24v bow thruster
Side Power SE130, 24v stern thruster
Emergency tiller Zincs (5)
Fusion stereo system with speakers and controls in the salon and pilothouse
Boat prepped for water maker installation
Spare parts, safety equipment, bedding, waterway guides, galley cookware Intercom system with four phones

Garmin Package:

Pilothouse:

(2) GPSMap 7612SXV multifunction display
(1)GHC20 autopilot control
(1)VHF 200

Flybridge:

(1) GPSMap 7412 multifunction display
(1) GHC20 autopilot control
(1)VHF 200

Other:

GMR24XHD Radar antenna
B260 bronze through-hull transducer
GHP20 corepack (autopilot) with Smart Pump
GC10 reverse image camera installed on radar arch facing aft
(2) VHF antenna
Intellian i3 Sat TV dish
Extra12" multifunction screen in the pilothouse
Vesper AIS tranceiver
