1995 Nauticat 33

Pilothouse Salon & Lower Helm

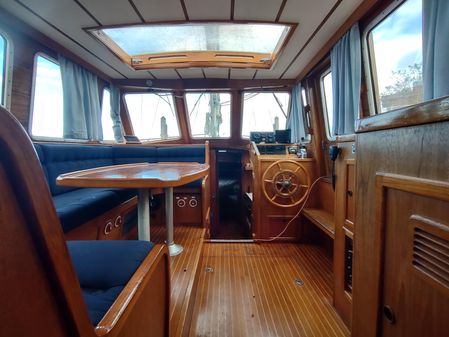

The salon is entered via the sliding door on the starboard side of the Pilothouse. The lower helm station is directly forward of the sliding door with a 19" Teak steering wheel. There is 6'1" headroom throughout the salon and an overhead clear glass sliding hatch that measures 53" X 28". Directly behind the helm station and on the other side of the sliding entry door is a large storage locker, main AC/DC panel and monitor panels. A Kenwood Sirius AM/FM/CD stereo is built into the cabinet (needs replacing).  The port side of the salon is fitted with a large "U" shaped settee and accompanying dinette pedestal table.  Engine access is via removable teak and holly panels beneath the dinette and salon sole.

The entire Pilothouse is surrounded by large windows providing an open and airy space. The front windows are covered with canvas and each of the three panels have windshield wipers. A Weems & Plath bronze clock is affixed to the aft bulkhead next to the companionway leading down to the aft stateroom.

Staterooms

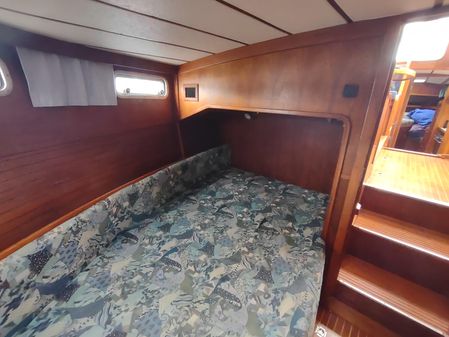

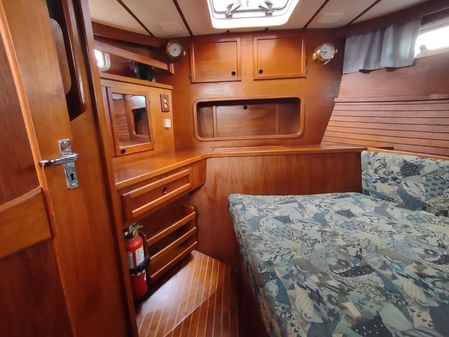

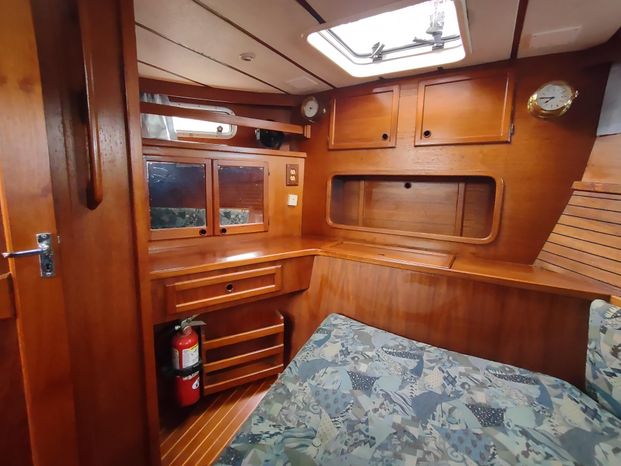

There is a stateroom in the forward section of the boat accessible via the galley and an aft stateroom with steps up to the salon. Each stateroom provides 5'11" headroom. The aft stateroom has a portside 45" X 6'11" berth, a large vanity with mirror is located to starboard with storage drawer. There is an  ensuite head located on the starboard side with C-head composting head, hand wand shower, sink and mirrored cabinet.

The forward stateroom has a 6'8" X 45 " portside offset berth with side dressing seat and storage locker.  The main head is just aft of the foreward stateroom and across from the galley. The main head features 5'10" headroom, Jabsco manual toilet, vanity with sink, storage compartments and mirror. There is a separate shower enclosure with bench seat and 18 X 21" teak bordered mirror.

There is a 50 gallon holding tank located under the forward cabin berth with "Y" valve options for pump-out or maceration and overboard discharge

Lower Helm

• All Raymarine Electronics (new in 2018)
• Axiom 9 Chart Plotter coupled to autopilot controlled by EV-1 sensor and ACU200 actuator,
• Quantum Radome radar system
• AIS 650 transponder
• i70S multifunction display (wind, course depth)
• p70S Pilot Controller (autopilot)
• Xantex battery station monitor for dedicated engine battery
• Icom 424G VHF radio with upper helm remote mic
• Engine control/monitor panel
• Engine throttle control
• Bow thruster controls

Upper Helm

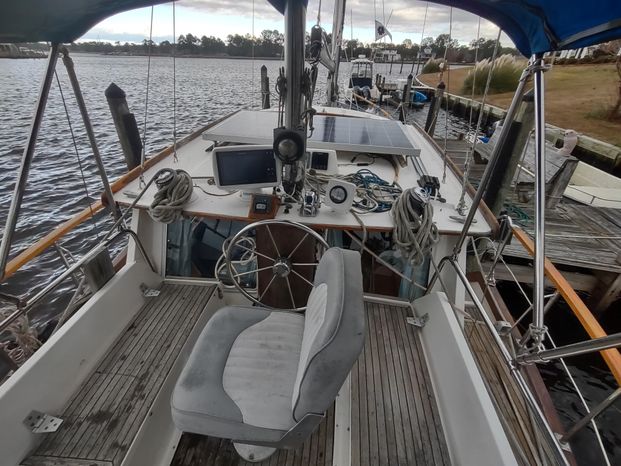

Topside helm station consists of a pilot seat flanked by two bench seats that are 45" long. There is a 23" stainless steel steering wheel with teleflex hydraulic steering. All furling lines lead back to upper helm for single-handed operation.

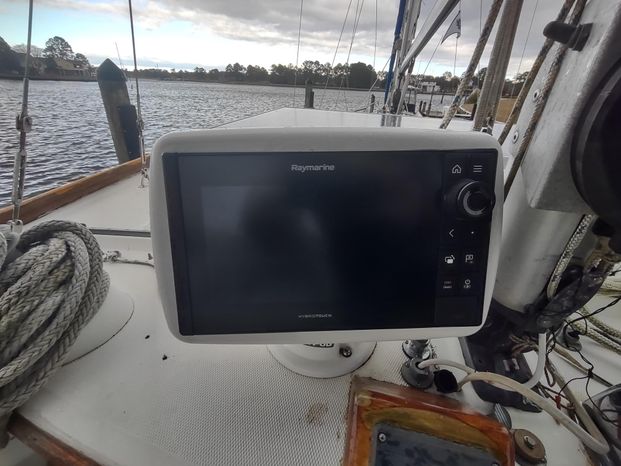

• Raymarine Axiom 9 Pro chart plotter with integrated autopilot, radar and AIS
• 4" Plastimo compass mounted on mizzen mast
• Raymarine i60 Wind instrument
• Raymarine p70S Auto Pilot
• VDO rpm gauge
• (2) stereo speakers
• 12 volt accessory plug
• Remote VHF mic hookup
• (2) 30 amp inlets

The galley is located between the salon and forward stateroom. The 5'7" long by 22" deep formica counter top occupies the starboard side, while to port is a secondary refrigeration system (where pantry normally would be) plus utensil drawers and additional cabinets. Next to the portside galley fixtures is the entry to the main head with separate shower enclosure.

• Eno Marine LPG stove with three burners and oven
• Formica cover
• GE microwave
• Dual stainless steel sinks
• Single lever faucet mixer

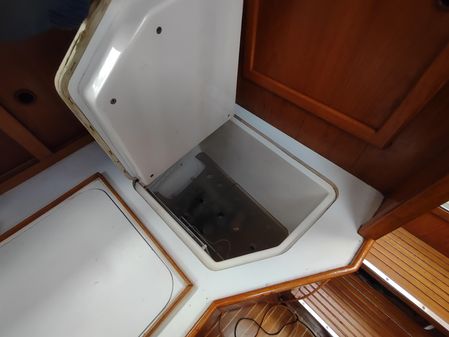

• Top load Norcold 3.5 cubic foot refrigerator and secondary Isostar White Line refrigerator
• Under sink storage locker
• Isotemp hot water heater
• VDO Fresh water level gauge
• Jabsco pressure water system
• (3) Above counter teak storage lockers
• Wall storage locker
• (2) DC electric plugs
• (1) 110 double GFI AC wall outlet

• Panda Fischer 8MINI generator encased in noise suppression container in engine compartment
• House batteries Lifeline GPL-4CT 4x6V wired to give nominal 400 Amp-Hr at 12V; new in 2018
• Engine battery: Duracell Ultra BCI 31M AGN; 800CCA new in 2022
• Magnum MS2812 Charger/inverter with ME-RC50 remote display and ME-BMK battery monitor that can report on the rate of charge/discharge on the house batteries. (new in 2018)
•  5’x3’ Solar panel
• Victron MPPT 100/30 Smart Solar Controller (New)
• 12 volt DC and 120 volt AC outlets in all cabins (including bathrooms)
• Lunaire Marine model LPSC16HL reverse cycle air conditioning system
• All lights, interior and navigation, (except deck floodlights) now LED
• (2) 50-foot shore power cords
• (2) 30 am power inlets on board.

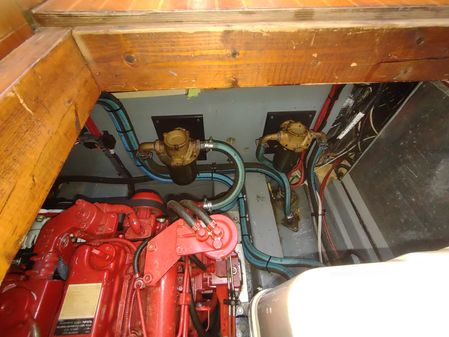

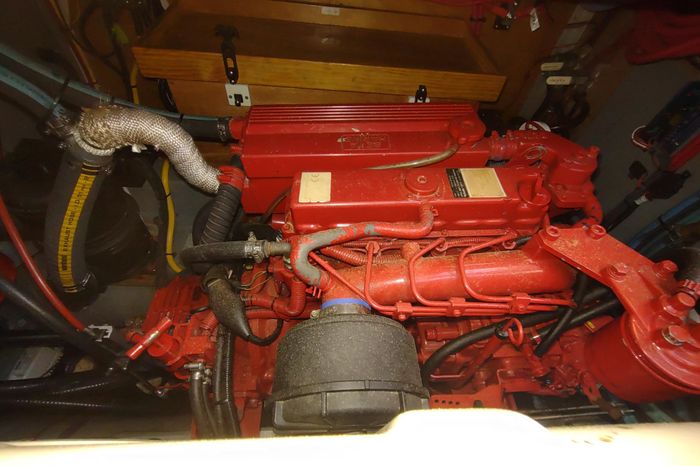

• Beta Marine 60 4 cylinder engine (New 2018)  approx 170 hrs
• ZF 25M transmission with a 2.27 reduction ratio
• Morse single lever engine controls at both upper and lower helms with gauges at the lower helm station and temperature and oil pressure alarms at the upper helm
• New 20 inch Michigan MP3 three blade bronze prop
• 40 mm stainless steel shaft
• PSS dripless shaft seal
• Vetus bow thruster
• Teleflex hydraulic steering
• Dual fuel tanks, port and starboard, in engine room (New in 2018)
• Dual primary fuel filters (manual) with filter pressure gauge in salon
• Racor 500FG fuel filter
• Dual Rule bilge pumps
• 5 thru-hulls replaced in 2018

Ketch rigged with two anodized Selden aluminum deck-stepped mast spars and booms. The aluminum spreaders are equipped with "Cormorant" guards.  The standing rigging (New in 2017) is stainless steel 1 X 19 with 3/16" and 9/32" shrouds plus 3/8" turnbuckles.

• In-mast roller furling main (2018)
• Furlex Roller furling headstay
• 123% Genoa
• Mizzen North sail with topping lift
• Lewmar traveller at helm station
• Selden Rod Kicker solid vang on main boom
• (2) Lewmar #30 self tailing winches on cabin top at upper helm
• (2) Andersen-Scandanavia #10 single speed winches on either side of mainmast
• Split running backstays

• Blue bimini with aft extension and sail window over aft helm station
• Stern-mounted Garhauer davits (350 lb capacity)

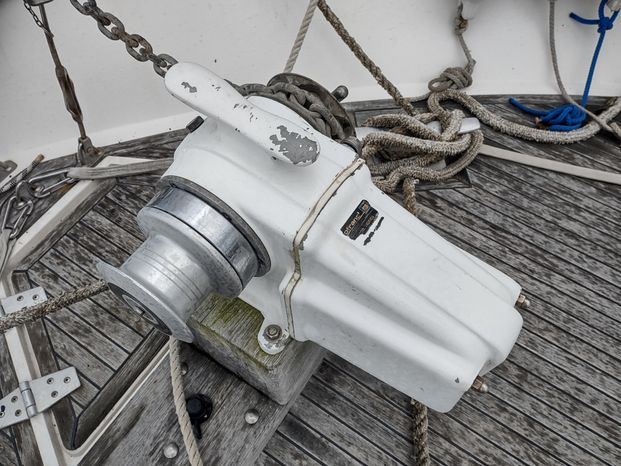

• Lofrans windlass raised on solid teak block for proper chain rode deployment
• 120 ft 5/16” chain
•  #35 Bruce main anchor
• Danforth #12 secondary anchor
• Fortress FX23 aluminum anchor mounted at stern railing
• New parachute sea anchor
• Transom mounted swim ladder
• Rule high water alarm
• Canvas covers for teak cap rail

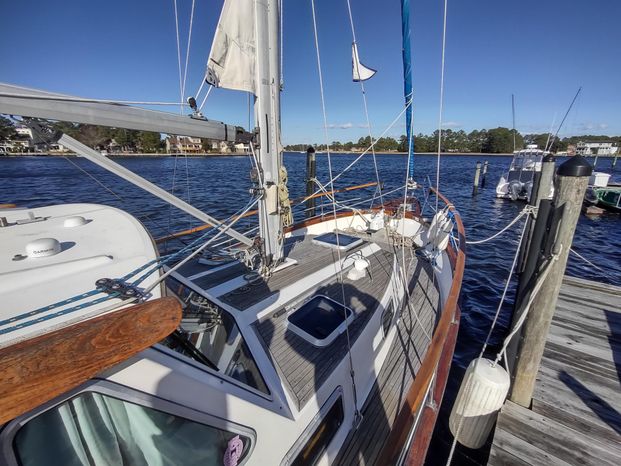

• Three (3) forward hatches
• One (1) aft hatch
• Large sliding 53" X 28" clear hatch over the Salon-Pilothouse
• Removable fly screens on all hatches and portlights
• Various Blue canvas covers for hatches, winches etc
• White "tent" over the large salon hatch
• (2) Boat hooks
• Lifesling in bag mounted on stern rail
• TV antenna on mizzen mast
• Radar reflector on mizzen mast
• Deck lights on Main mast and mizzen mast
• Pelican #300 case First aid kit
• Life jackets
• Weems & Plath bronze clock in salon
• Fire Boy fire suppression system in engine room
• Fire extinguisher in galley and aft Stateroom
